| Battery Rated Capacity | 250Ah | ||
| Electrical | DC Rated Voltage | 768V | |
| Maximum Charge/Discharge Rate | 0.5C | ||
| DC Rated Energy | 576KWh | ||
| Performance & Safety | DC Round Trip Efficiency @ Rated Power | 93%~95% | |
| Battery Chemistry | LFP | ||
| Calendar Life | 20 years | ||
| Fire Suppression | Gas + (water options) | ||
| Cooling Concept of Battery Chamber | Air cooling | ||
| Codes & Compliance | UL9540/UL9540A/CE/IEC | ||
| General Data (Combined BESS) | Weight (Approximate) | 9T | |
| Enclosure Dimensions（W*H*D） | 2991*2896*2438mm | ||
| Enclosure Rating | IP54 | ||
| Operating Temperature Range | -20~55℃ | ||
| Software | Communication Interfaces | RS485、CAN、LAN | |
| Communication Protocols | ModBus TCP/ModBus RTU/CAN | ||
| PCS | AC Grid-connected Parameters | Rated Output Power | 250kW |
| Rated Current | 360A | ||
| Rated Grid Voltage | 400V | ||
| Output Voltage Frequency | 50/60HZ | ||
| Power Factor Range | 0.99/-1~1 | ||
Total Harmonic Distortion of Grid-connected Current | ≤3% | ||
| AC Off-grid Parameters | Rated Output Voltage | 400V | |
| Maximum Output Power | 250kW | ||
| Maximum AC Current | 360A | ||
| Output Voltage Frequency | 50/60HZ | ||
Output Voltage Total Harmonic Distortion | ≤2% | ||
New Energy Storage
New electric energy storage drives reform of the energy structure

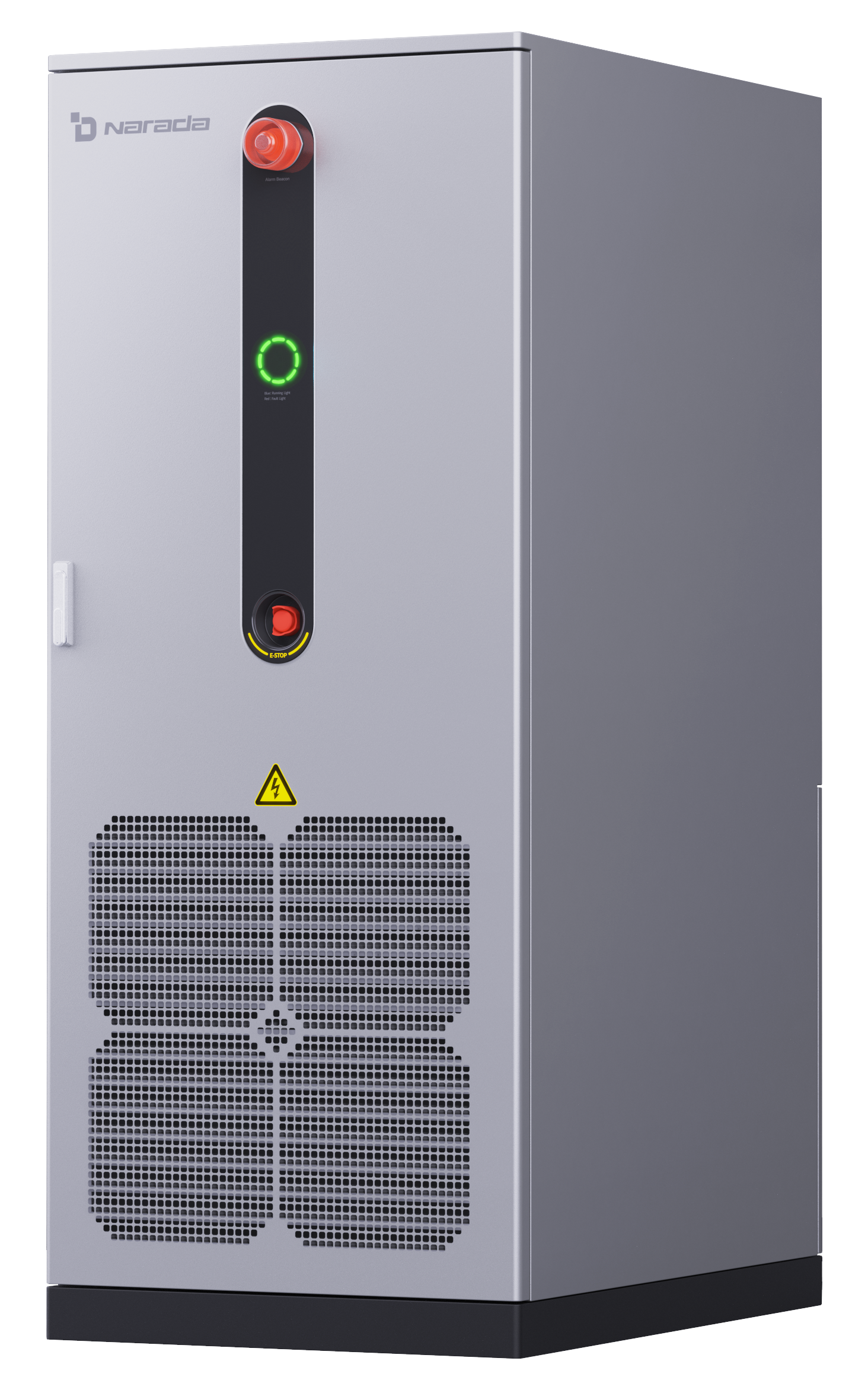

Edge F - Integrated Standard 10ft Energy Storage SyatemBack
Technical advantages
•Highly integrated: AC and DC in one design, Plug-and-Play
•100% preassembled shipping: Factory preassembly and pre-testing
•Convenient transportation: Less space usage, applicable to most vehicles
•Connect to grid simply: 400V low voltage grid-connected design, simple grid-connection & acceptance process
•Flexible application: 500kWh modular design, suitable for industrial and commercial power consumption
- Product Performance
