| Model | Rated Voltage (V) | Rated Capacity (Ah, C10) | Dimensions | Terminal | ||
| Length | Width | Height | ||||
| REX-200 | 2 | 200 | 96 | 227 | 303 | M8 |
| REX-300 | 2 | 300 | 133 | 227 | 303 | M8 |
| REX-400 | 2 | 400 | 170 | 227 | 303 | M8 |
| REX-500 | 2 | 500 | 155 | 231 | 408 | M8 |
| REX-600 | 2 | 600 | 180 | 231 | 408 | M8 |
| REX-800 | 2 | 800 | 231 | 231 | 408 | M8 |
| REX-1000 | 2 | 1000 | 282 | 231 | 408 | M8 |
| REX-1200 | 2 | 1200 | 264 | 232 | 514 | M8 |
| REX-1500 | 2 | 1500 | 322 | 232 | 514 | M8 |
| REX-2000 | 2 | 2000 | 456 | 232 | 514 | M8 |
Industrial Energy Storage
Uninterrupted and reliable

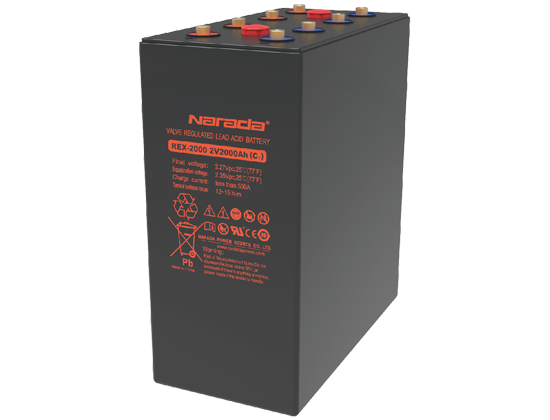

REX SeriesBack
Technical advantages
•AGM-Acid Valve-Regulated Lead Acid battery
•Excellent deep discharge recovery and fast recharge performance
•Patent precise Terminal glue sealing & ABS Heat sealing
•Innovative robust design inside and out to ensure superb safety and reliability
•Horizontal installation position for less space, easy installation & maintenance
•Self-regulating pressure relief valve with flame arrester
•Flame retardant ABS case (UL94 V-0, optional)
•Low self-discharge rate
•High gas recombination efficiency (>99%)
•Comply with IEC, IEEE, UL, EN, CE standards, etc.
•Design life at 25°C (77°F): 20+ years
